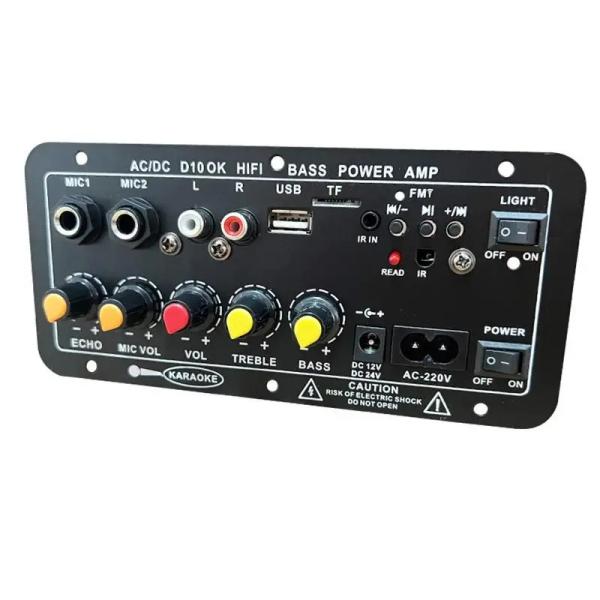

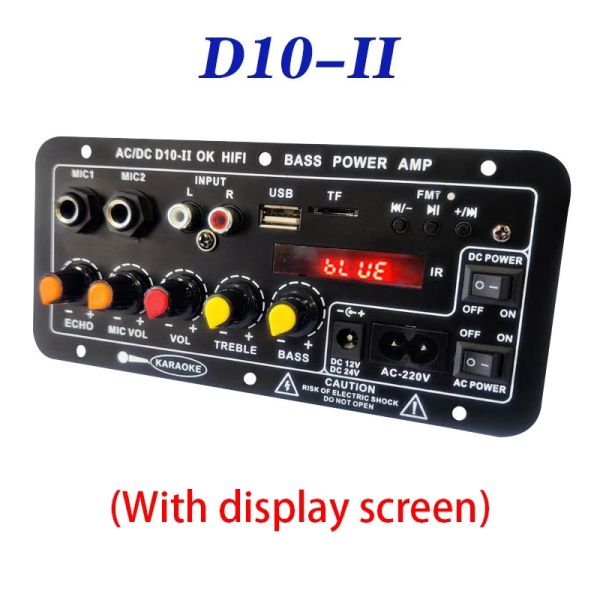

Amplifier Board D10-II for 4 Ohm 40W Speaker 110V 220V 12V 24V Subwoofer Audio Module

Name: Amplifier Board D10II for 4 Ohm 40W Speaker 110V 220V 12V 24V Subwoofer Audio Module
Brand: creatall
Price: 6.13 USD

Wholesale Amplifier Board D10-II for 4 Ohm 40W Speaker 110V 220V 12V 24V Subwoofer Audio Module from china suppliers

Application : Amplifier Board

Type : Amplifier Board, Amplifier Board

Series : Amplifier Board

Description : car audio amplifier board

Place of Origin : Guangdong, China

Brand Name : creatall

Model Number : D10 30-120W

Manufacturer : creatall

MOQ : 10 sets

Price : $6.13/sets 10-99 sets

Contact Now

Amplifier Board D10-II for 4 Ohm 40W Speaker 110V 220V 12V 24V Subwoofer Audio Module

Products Description

Feature:
- Support reading MP3 songs in TF-card / U-disk.
- Independent adjustment of Treble, Bass and Master volume.
- Built-in BT Receiver and FM Radio Function.

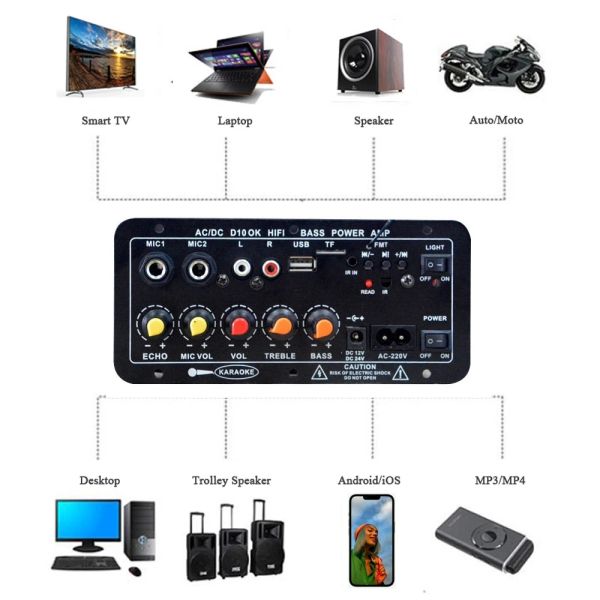

- With AUX input port, can be connected to the PC/Phone/CD.
- Dual microphone input, adjustable reverb.
- Support Voltage AC 110V/ 220V or DC 12V/ 24V.

How to Connect BT ?
1. Press ''MODE'' button to switch it to BT status.
2. Open phone BT, search the Bluetooth device and connect.
3. You can use it after pairing successfully.

Description:
Type: BT AMP Board
Model: D10W
BT: V5.0
Audio Channel: 1.0
Feature: FM Radio / Treble / Bass
Voltage: AC 110/220V, DC 12V/24V
Power: 30-120W (Deponds on Voltage)
Input: BT/Lotus/U-Disk/TF/MIC

NOTE:
1. Support AC 110V / 220V, automatic adaptation.
2. If connect to DC 12V-24V, the Current needs more than 3A.

Warning: Pls select only one connection method !!!

How to use Radio ?
1. Hang up the Radio Antenna.
2. Press ''MODE'' button to switch it to the radio state.
3. Press the ''Play'' button to search the entire channel and save.
4. Press the previous / next track to switch to use.

TIPS: This is not professional radio, no good effect, pls understand!

Audio Wiring instruction :
1. For subwoofer - Connect speaker about 100 magnets or 100W.
2. For Tweeter - Connect to 30W tweeter (can also be disconnected, pls add a capacitor when connect).
3. Suitable for 8-12 inch speakers.

Notice:
Please turn off the small master volume before test, then increase the volume slowly after power-on.

-> If the sound is intermittent or hoarse and distorted during increasing the volume, it means the speaker and amplifier are not
matched. Please use small sound or change a suitable one.
