XL6009E ICs Product Category Standard Mounting DC-DC Booster Board for Advanced Power

Name: XL6009E ICs Product Category Standard Mounting DCDC Booster Board for Advanced Power
Brand: creatall
Price: 0.62 USD

Wholesale XL6009E ICs Product Category Standard Mounting DC-DC Booster Board for Advanced Power from china suppliers

Place of Origin : Guangdong, China

Brand Name : creatall

Model Number : CA-6009

Mounting Type : standard

Description : standard

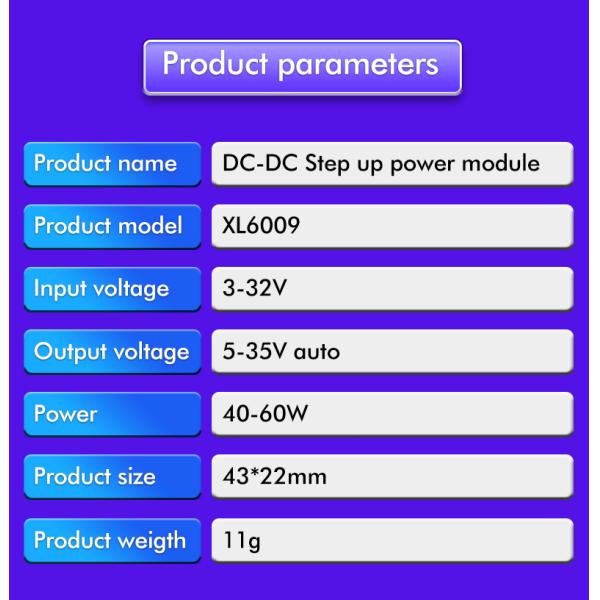

Model : XL6009

Size : 43*22MM

Voltage : Input 3-32v output 5-35v

MOQ : 10 pieces

Price : $0.62/pieces 10-99 pieces

Contact Now

XL6009E ICs Product Category Standard Mounting DC-DC Booster Board for Advanced Power

Products Description

Contact us
Wechat：	alvacheng88	Mobile：	+86-13689587416
Skype：	alvacheng1	E-mail：	leo@creatall.com

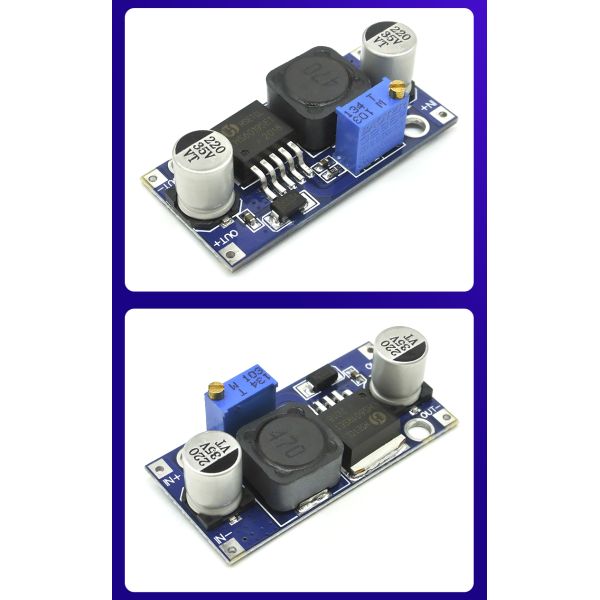

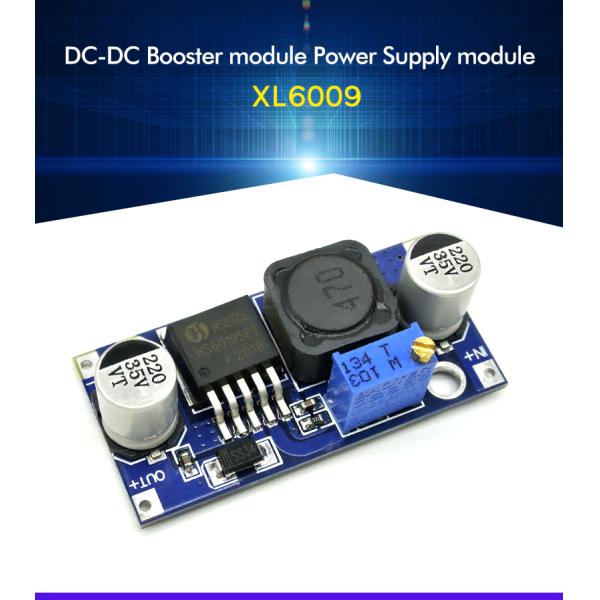

XL6009 LED LCD TV backlight display module DC-DC Output Adjustable step-up power supply module board

Brand: CREATALL
Model: XL6009
Size :43mm * 21mm * 14mm

Input :3V~32V Output :5V~35V Output current :4A(MAX) Conversion efficiency ::<94% On-off level:400KHz Operating temperature :-40°C~ +85°C Load capacity :士0.5% Voltage regulation: 士0.5%

Type: Other power modules
Purpose: LCD TV voltage conversion voltage conversion step-down module
Type: LCD module

Our products are independent research and development and production, sophisticated technology, each products are through strict test before sent to the user. And can meet the demand of batch. 32V - 3V input /output highest 35V Output voltage range: 4V to 38V dc voltage continuously adjustable, high efficiency (96%) of the maximum output current for 4A. Advantage: use double thickening black oil PCB with high quality, all use imported SMD aluminum electrolytic capacitors, high Q value power inductors. And every piece of plate passes through the strict technical test, test completely using separate antistatic protection bag packaging. Note: Does this modules relative to the LM2577 triode mode conversion efficiency is higher Does this module is adjustable booster module, can by adjusting the precision of modules above circle more adjustable potentiometer To change the output voltage. The highest output voltage is 38 v. Chronological booster, reverse-time step-down. Does the module above marked GND (input), the IN + (input), GND (output), the OUT + (output) Does working temperature: : industrial grade 40 to + 85 (-) (ambient temperature more than 40 degrees, please reduce power use, or enhance heat dissipation)
